COMPONENTS AND SUPPLIES

Arduino UNO×1
Breadboard (generic)×1
Single Turn Potentiometer- 10k ohms×1
LED (generic)×1
Resistor 1k ohm×1
Jumper wires (generic)×1

APPS AND ONLINE SERVICES

Arduino IDE

ABOUT THIS PROJECT

Abstract

  • This project demonstrates working with a potentiometer.

Also visit here.

Objective

  • To control the brightness of a LED using potentiometer.

https://www.youtube.com/embed/jzSYn3A_l_M?rel=0Working with a Potentiometer

CODE

CodeArduino

const int analog_ip = A0;

const int LED = 3;

int inputVal = 0;

void setup() {

  pinMode (LED, OUTPUT);

}

void loop() {

  inputVal = analogRead(analog_ip);

  analogWrite (LED, inputVal/4);

  delay(100);

}

SCHEMATICS

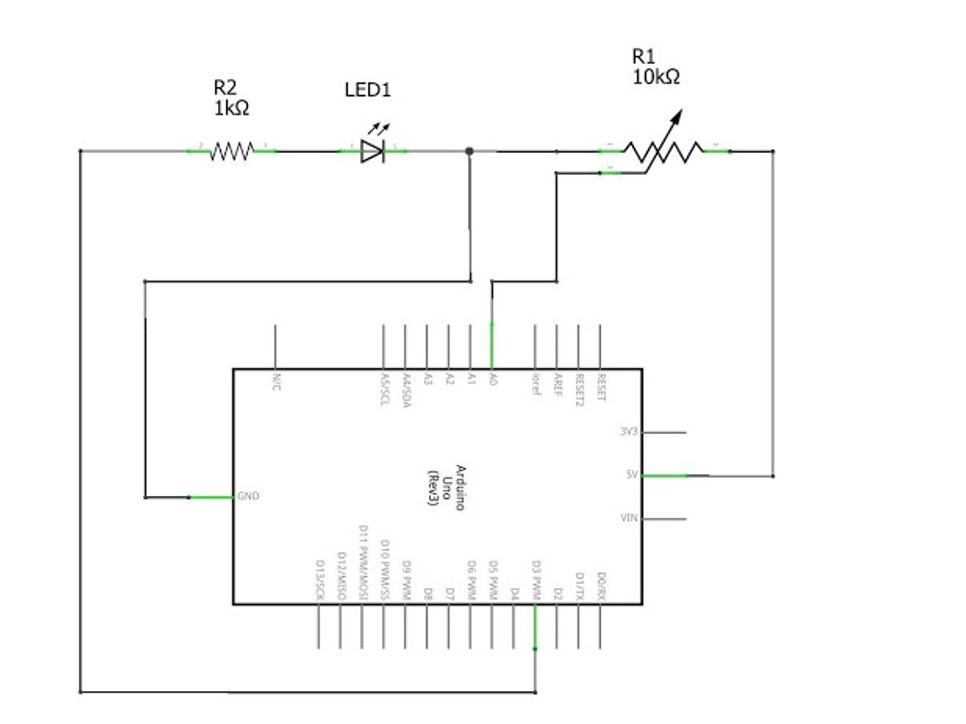

Circuit Diagram

DOWNLOAD

Workingwithpotentiometerandled etoscp220i

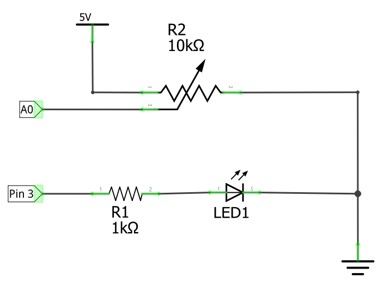

Schematic Diagram

DOWNLOAD

Workingwithpotentiometerandled pshjuace3w

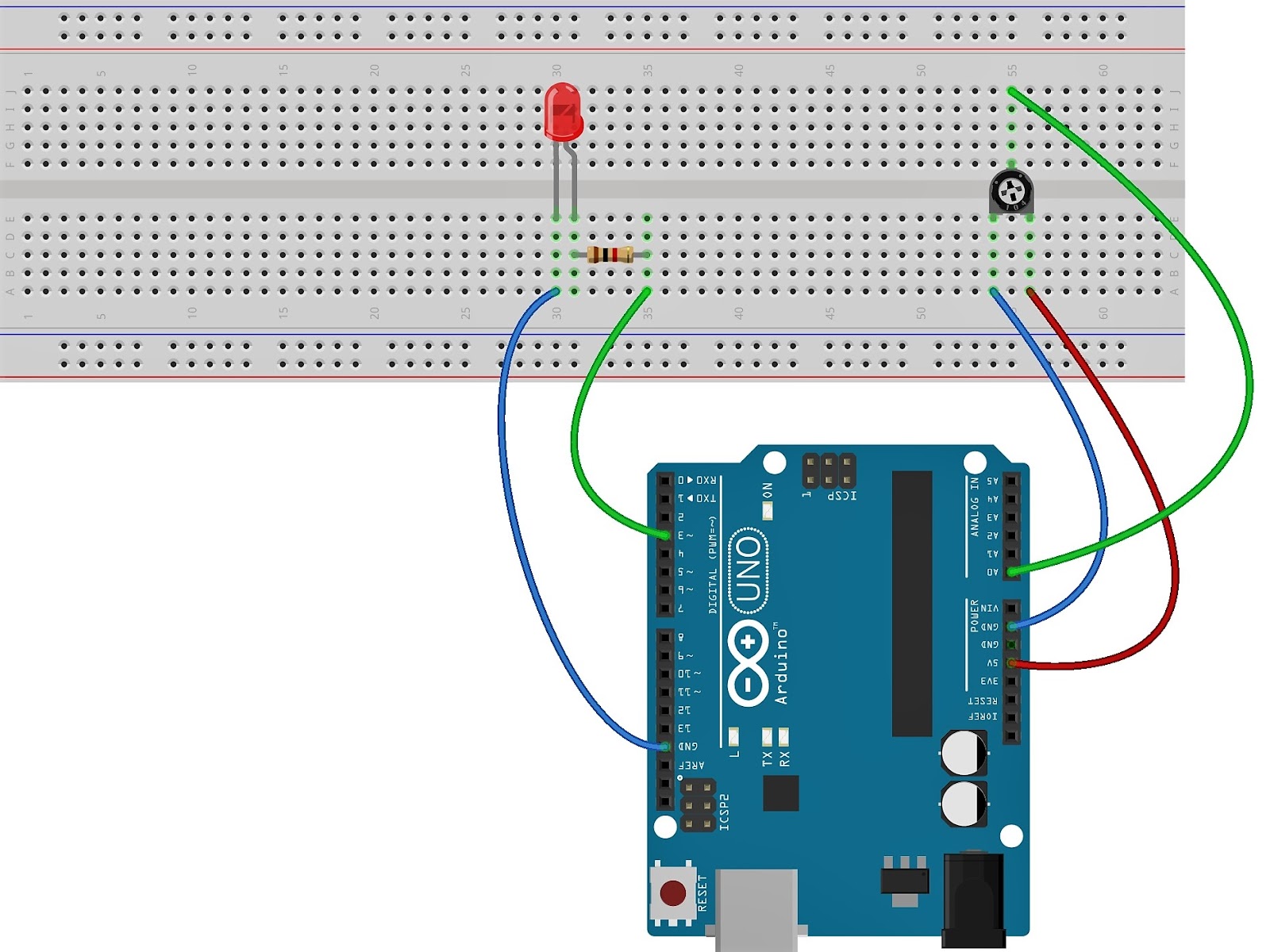

Breadboard Diagram

DOWNLOAD

Workingwithpotentiometerandled kbdp9mb0rq

Make a Simple LED Circuit

by Rajnish | Sep 25, 2021 | Uncategorized | 0 comments

Make an LED turn on and/or blink.

Make a Simple LED Circuit

COMPONENTS AND SUPPLIES

LED (generic)×1
Arduino UNO×1
Jumper wires (generic)×1
Resistor 220 ohm×1

ABOUT THIS PROJECT

Turn on and/or blink an LED

CODE

  • Simple Code
  • LED Blink Code
Simple CodeArduino

Copy and paste this code into your Arduino IDE or Web Editor

#define LED 13  // The pin the LED is connected to

void setup() {

  pinMode(LED, OUTPUT); // Declare the LED as an output

}

void loop() {

  digitalWrite(LED, HIGH); // Turn the LED on

}

SCHEMATICS

Diagram

DOWNLOAD

Fritzing bb umhghz8o9v
